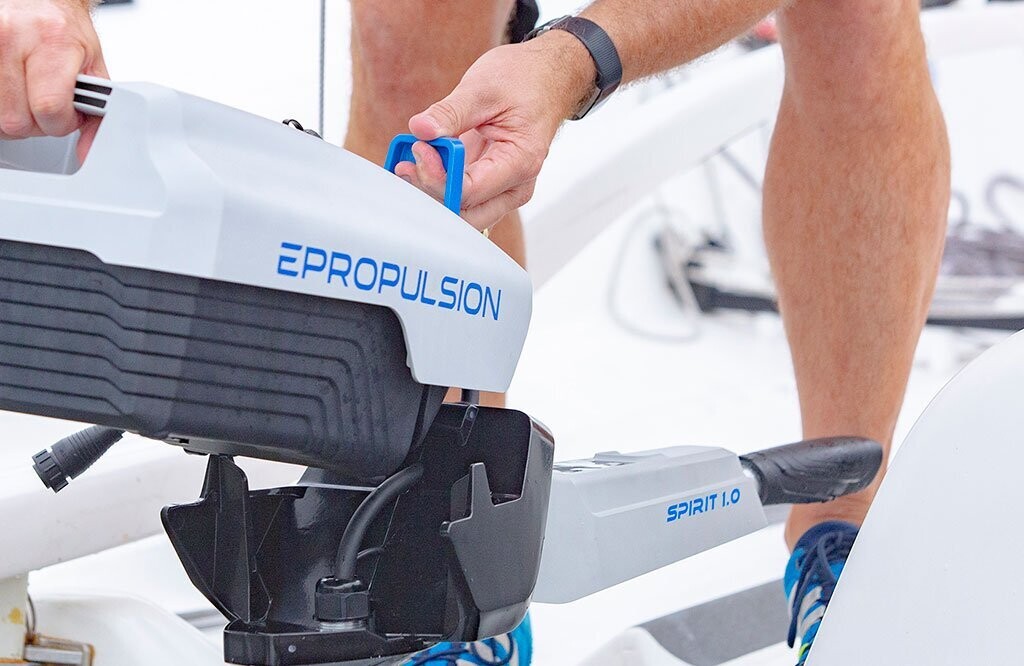

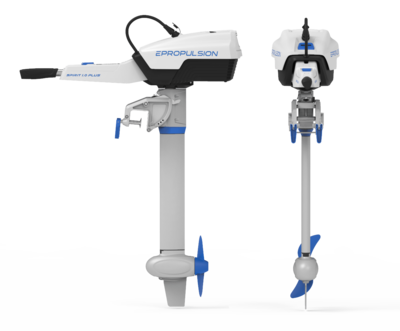

Technical Specifications – ePropulsion portable electric Spirit 1.0 Evo
Choose Tiller or Remote Control - Free
Choose Remote Control Steering Kit - Extra
Motor
Input Power: 1kW
Motor Weight: 10.6kg
Control: Tiller and Remote
Shaft Length: Extra Short (for tenders) Short and Long
Battery specification
Battery capacity: 1276Wh
Over 80% capacity after 800 cycles of 100% DOD
Battery life: 500 cycles at 80% DOD
Battery Weight: 8.7kg
Flotable, waterproof to IP67
Battery charging
Fast charger 3.5 hours
Standard charger 7 hours
Battery management system
Lithium-ion polymer battery
44.8 V nominal voltage
52.2 V final charging voltage
33 V cut-off voltage
Charging temperature 0°C – 45°C / 32˚F – 113˚F
Operating temperature-10°C – 60°C / 14˚F – 140˚F
Safety
Kill stop switch
IP67 ingress protection
Propeller collision emergency stop
Reinforced transom mounting
Low battery indicator
Over temperature protection
Convenience
Foldable tiller design
Integrated display
Solar panel compatible, max 180 W
Protective beach mode
Tiller or remote options
Drive
Step less forward/reverse
360° tiller steering, direction lockable
Direct drive
Rated RPM 1,200
316 N / 71 lbs static thrust
55% overall efficiency
Natural cooling
Field-oriented motor control
Trim angles including 0°, 7°, 14°, 21°
Tilt angle 70°
Propeller size – 28 × 14.7 cm / 11′ × 5.8′
